Protector sliding folding shutter

Full height solid aluminium panels provide maximum security protection along with absolute privacy.

General desciption

The Protector sliding folding shutter offers the highest level of security and privacy of the FlexiGlide range. The panels are solid aluminium and the shutter completely closes off an area when it is shut.

  • Solid aluminium panels
  • Excellent security
  • Maximum privacy

Images Protector

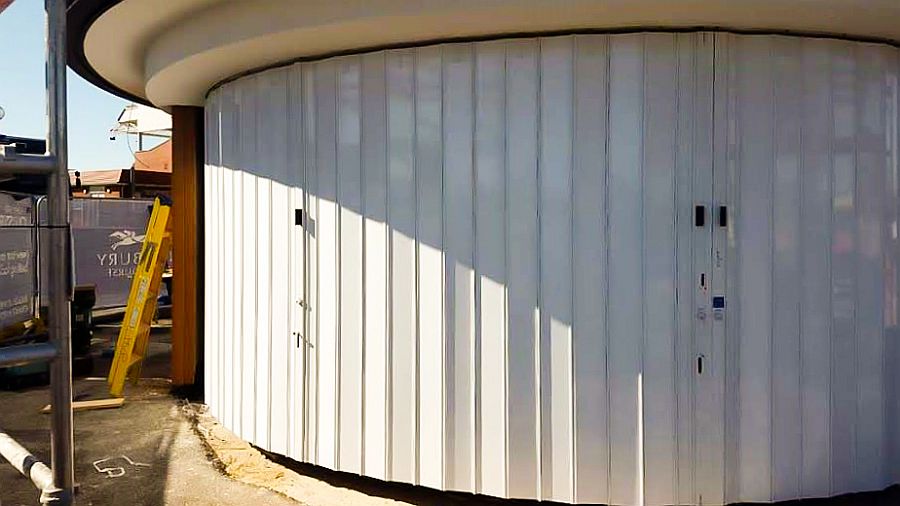

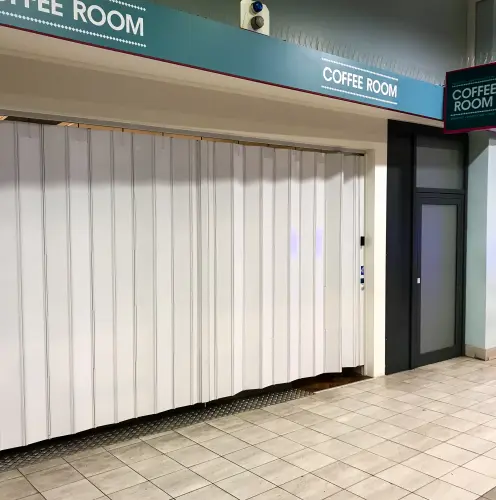

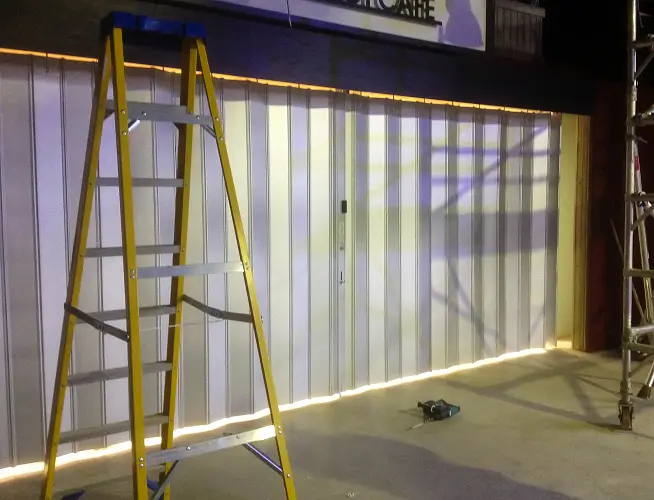

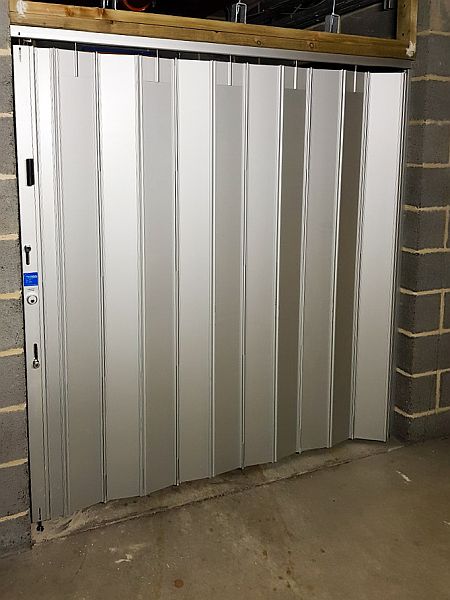

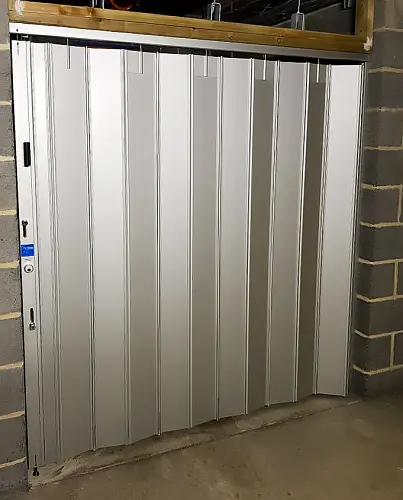

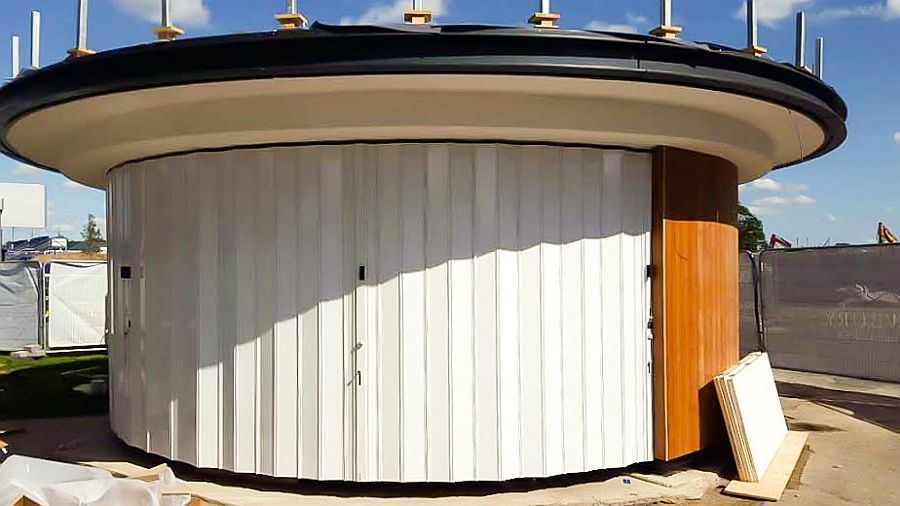

FlexiGlide Protector security shutter in closed position in a straight line installation. FlexiGlide Protector sliding folding security shutter FlexiGlide Protector folding shutter with custom made to incorporate vision panels FlexiGlide Protector with custom vision panels seen from the side

(Click images to enlarge)

Technical information

Product reference:

Protector Sliding Folding Security Shutter.

Arrangement:

Horizontally operated top hung sliding folding shutter.

Construction:

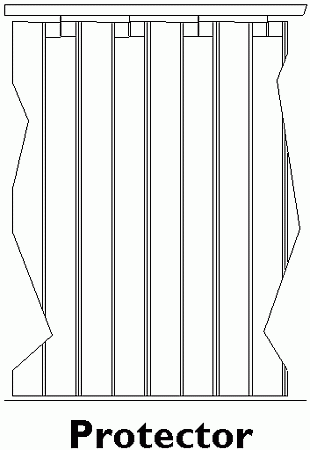

Diagram of a FlexiGlide Protector sliding folding shutter curtain

Constructed from 152mm wide by 1.83mm thick full height aluminium panels, framed by full height butt hinges at 178mm centres.

Track:

The overhead track is 33mm wide x 46mm high and takes 29mm diameter roller trolleys. The rollers bear on a 7mm thick aluminium surface within the track.

Track curves, where indicated, have a 254mm or 356mm radius.

A custom radius track is also available as an option.

Available finishes:

  • 10 micron clear anodizing
  • White acrylic paint
  • Light bronze acrylic paint
  • Medium bronze acrylic paint
  • Black acrylic paint

Optional painting to any RAL colour possible.

Operation:

Push or pull, manual operation.

Locking Options:

The grill incorporates 62mm x 33mm aluminium rectangular locking posts that are placed at regular intervals along the length of the curtain.

Posts fitted with floor bolts include a spring capped floor socket.

Lead and trailing end posts are fitted with cylinder controlled lock stiles with self-adjusting cold rolled steel floor and top track bolts.

Intermediate locking posts are generally fitted for every 3048mm of curtain.

Bi-parting curtain assemblies are supplied with a hook-bolt deadlock activated by keyed or thumb-turn cylinders. The associated slam-post is fitted with a steel floor bolt and includes a full height channel to accept the hook-bolt deadlock.

Weight and Stacking:

12 kg/square metre.

Minimum stacking is 87.5mm/metre of opening plus 89mm per locking member.

Please note: the shutter support must be able to carry the weight of a fully stacked door at any point along its length.
