Barrier sliding folding shutter

A multi purpose shutter often used in behind-glass applications. Secure enough to lock up store fronts and yet open enough to allow air to circulate through.

General description

Sliding folding shutter available in a variety of patterns.

A higher level of security for lower cost.

  • Multiple curtain patterns to suit different aesthetics
  • Allows for good airflow and visibility, ideal for behind-glass applications
  • Offers an increased level of security at a lower cost compared to other solutions

Images Barrier

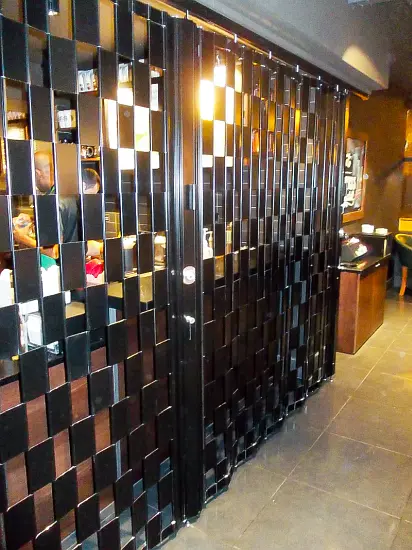

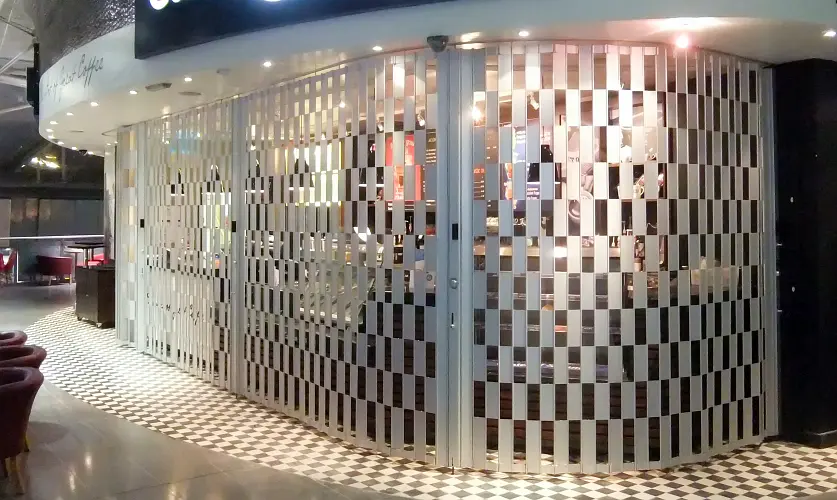

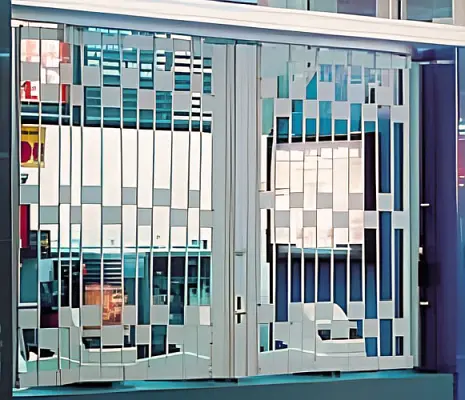

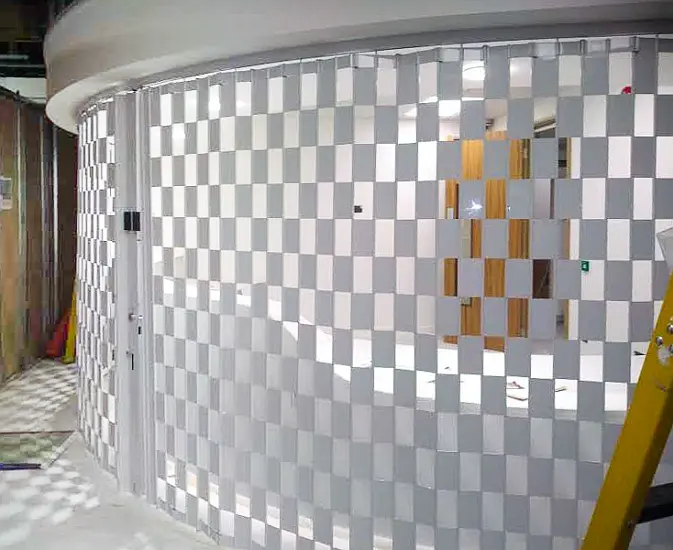

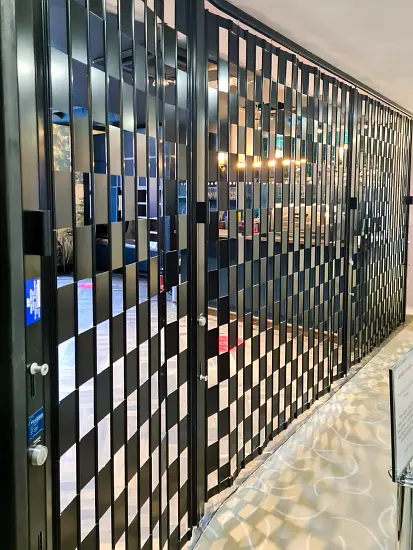

Sliding folding security grille on food counter in restaurant Barrier sliding folding shutter going around a corner Barrier sliding folding shutter on counter Barrier sliding folding shutter on counter Straight section of sliding shutter with a pattern blocking view in front of a bar Coffee bar in a terminal building closed off by a curved sliding security shutter of the FlexiGlide Barrier type A round curved security shutter in front of a reception desk Barrier horizontal sliding shutter closing off a restaurant bar area FlexiGlide Barrier sliding security shutter in a black finish

(Click images to enlarge)

Technical information

Product reference:

Barrier Sliding Folding Security Shutter.

Arrangement:

Horizontally operated top hung sliding folding shutter.

Construction:

Diagram of a FlexiGlide Barrier sliding folding shutter curtain

The Barrier incorporates 51mm high truss-like plates at the top and bottom of the closure. Constructed from 102mm wide x 1.5mm thick aluminium plates that slide over 8mm rods on 89mm centres in an alternating pattern. The plate height is indicated by model number (Sentry 33 - 3" plates, Sentry 1515 - 15" plates). You can choose from several curtain patterns.

Track:

The overhead track is 33mm wide x 46mm high and takes 29mm diameter roller trolleys. The rollers bear on a 7mm thick aluminium surface within the track.

Track curves, where indicated, have a 254mm or 356mm radius.

A custom radius track is also available as an option.

Available finish:

10 micron clear anodizing.

Operation:

Push or pull, manual operation.

Locking Options:

The grill incorporates 62mm x 33mm aluminium rectangular locking posts that are placed at regular intervals along the length of the curtain.

Posts fitted with floor bolts include a spring capped floor socket.

Lead and trailing end posts are fitted with cylinder controlled lock stiles with self-adjusting cold rolled steel floor and top track bolts.

Intermediate locking posts are generally fitted for every 3048mm of curtain.

Bi-parting curtain assemblies are supplied with a hook-bolt deadlock activated by keyed or thumb-turn cylinders. The associated slam-post is fitted with a steel floor bolt and includes a full height channel to accept the hook-bolt deadlock.

Weight and Stacking:

7.3 kg/square metre.

Minimum stacking is 87.5mm/metre of opening plus 89mm per locking member.

Please note: the shutter support must be able to carry the weight of a fully stacked door at any point along its length.

Downloads

FlexiGlide Barrier curtain patterns

The following patterns are available for the FlexiGlide Barrier sliding folding shutter

Diagram of a FlexiGlide Barrier sliding folding security shutter curtain pattern 525 Diagram of a FlexiGlide Barrier sliding folding security shutter curtain pattern S12 Diagram of a FlexiGlide Barrier sliding folding security shutter curtain pattern 33 Diagram of a FlexiGlide Barrier sliding folding security shutter curtain pattern 66 Diagram of a FlexiGlide Barrier sliding folding security shutter curtain pattern 99 Diagram of a FlexiGlide Barrier sliding folding security shutter curtain pattern 1212 Diagram of a FlexiGlide Barrier sliding folding security shutter curtain pattern 1515

Benefits

  • Robust Construction: The Barrier Sliding Folding Security Shutter features a sturdy design with truss-like plates at the top and bottom of the closure, providing durability and security.
  • Customizable Curtain Patterns: Choose from a variety of curtain patterns to match your aesthetic preferences and security needs, ensuring flexibility in design.
  • Smooth Operation: With horizontally operated top hung sliding folding arrangement, the shutter offers easy push or pull, manual operation for convenient use.
  • Secure Locking Options: Equipped with aluminium rectangular locking posts at regular intervals along the length of the curtain, along with cylinder-controlled lock stiles and hook-bolt deadlock for enhanced security.
  • Adaptable Track System: The overhead track accommodates roller trolleys and offers flexibility with custom radius options, ensuring smooth movement and installation adaptability.
  • Lightweight and Space-Efficient: Weighing 7.3 kg/square meter and requiring minimum stacking, the shutter optimizes space utilization while maintaining structural integrity.
